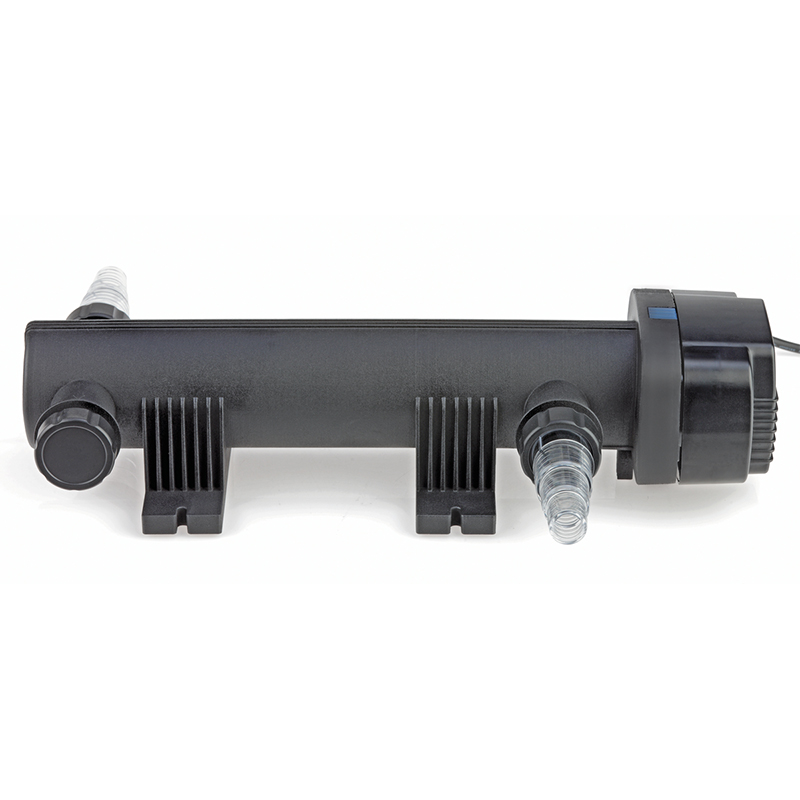

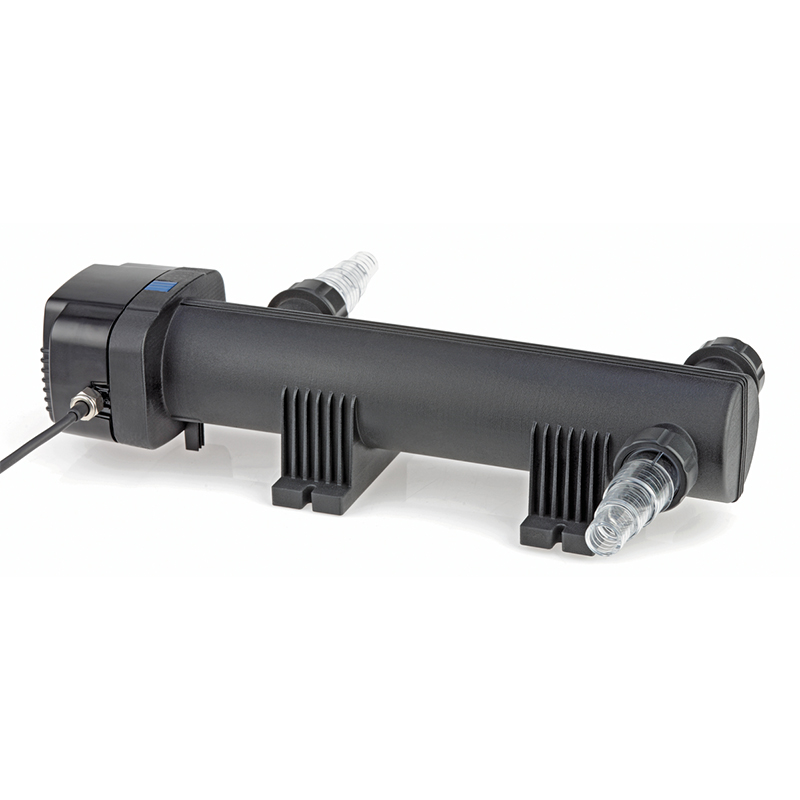

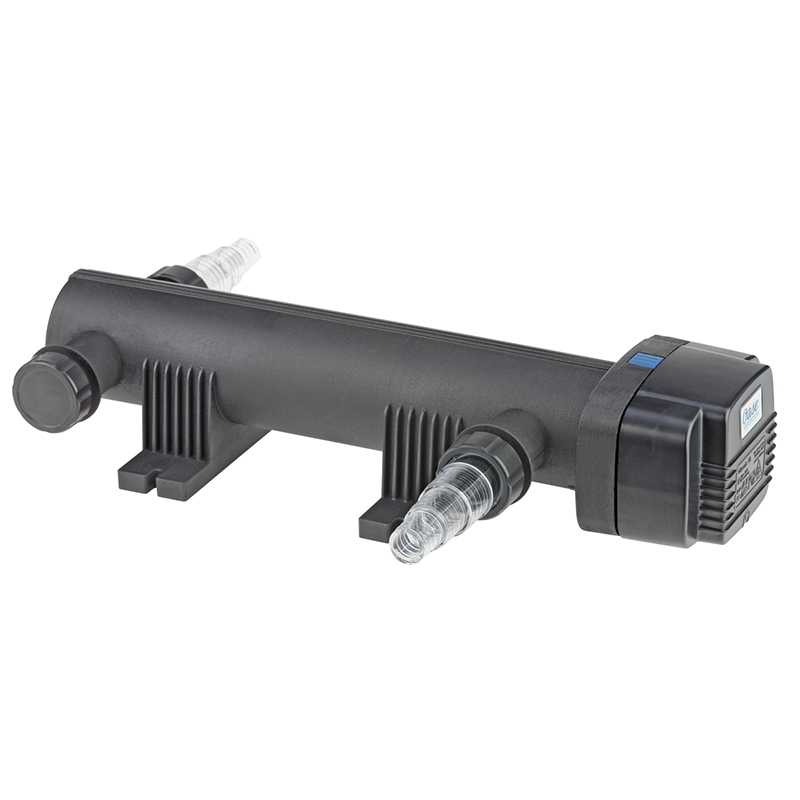

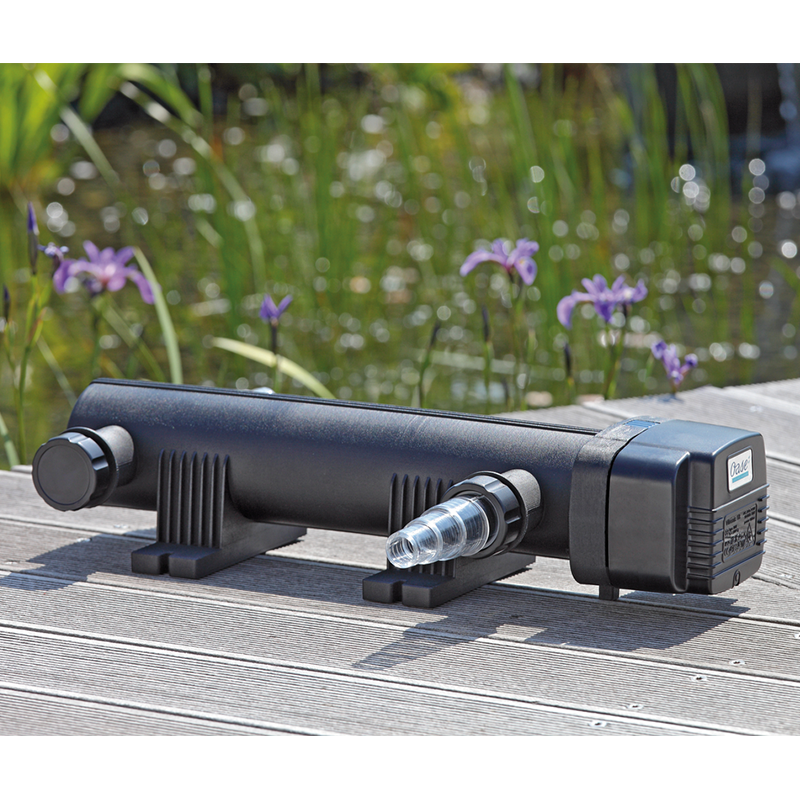

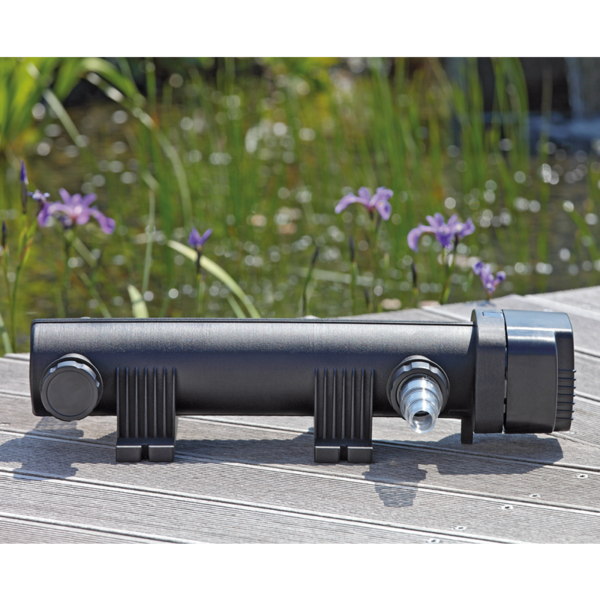

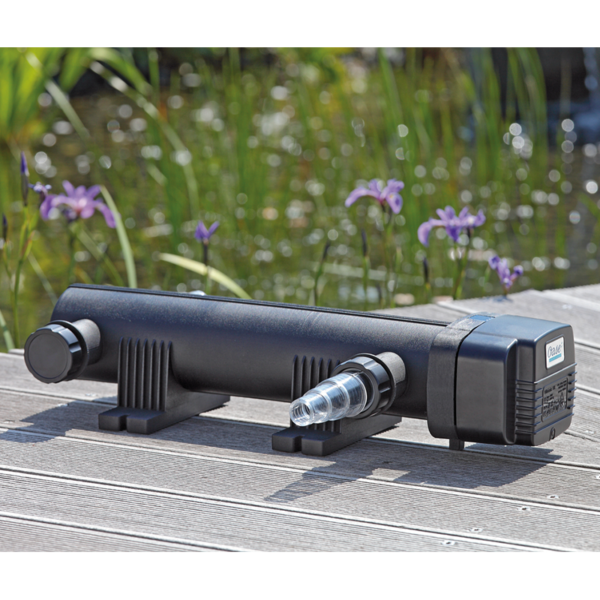

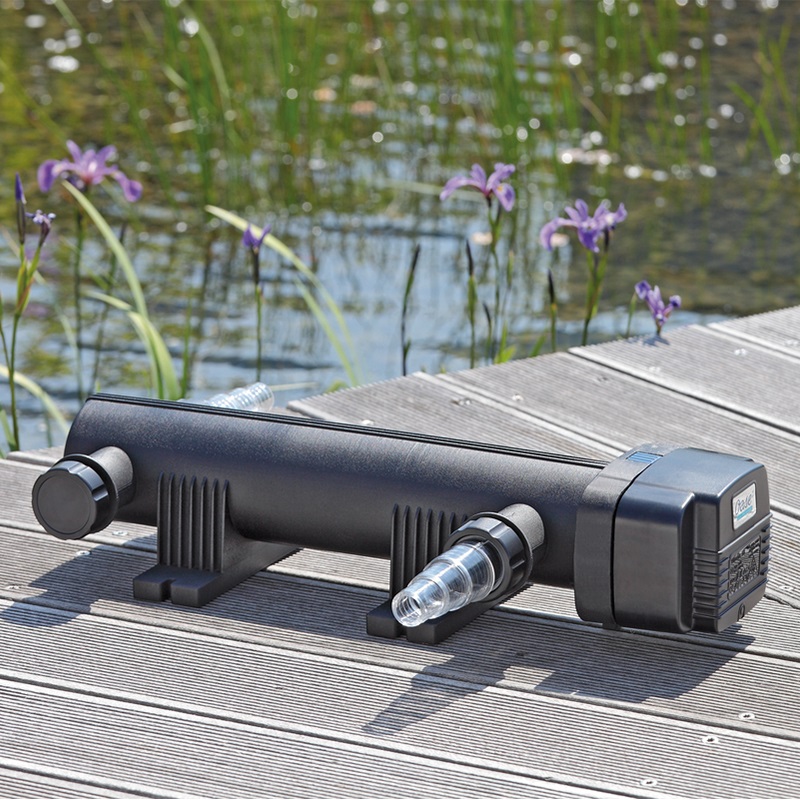

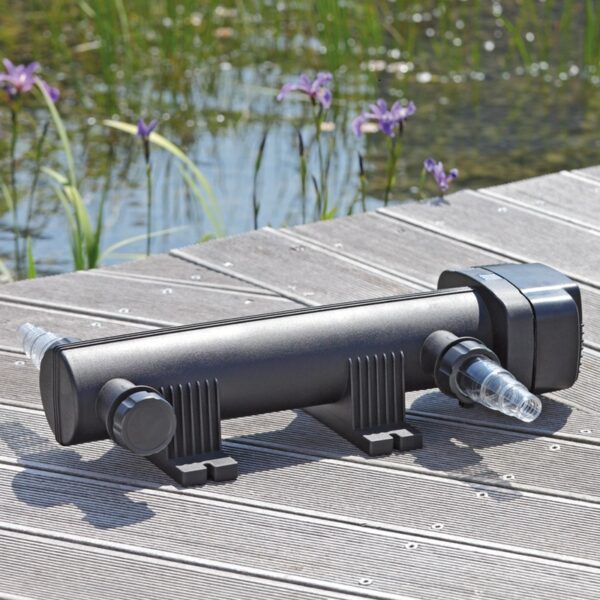

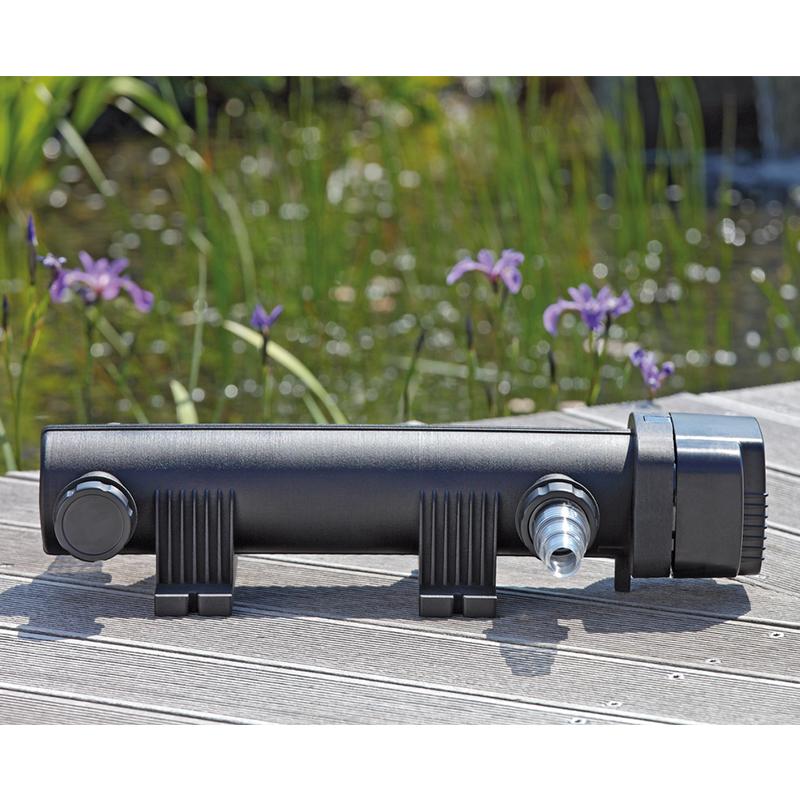

OASE Vitronic 24 W [INT]

Name: OASE Vitronic 24 W [INT]
SKU: AQ-03OU003
Price: 513.25 AUD
Availability: InStock

Original price was: $564.60.Current price is: $513.25.

SKU: AQ-03OU003 Category: Filtration

TECHNICAL DATA

Dimensions (L x W x H)	mm	529 x 186 x 130
Rated voltage		220 – 240 V / 50/60 Hz
Power consumption	W	24
Power cable length	m	5.00
Net weight	kg	2.25
Guarantee	Years	2
UVC power	W	24
Temperature display		No
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	25 / 32 / 38
Inlet connections		1″, 1 ¼”, 1 ½”
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1″, 1 ¼”, 1 ½”
Max. flow rate	l/h	4500
Max. operating pressure	bar	0.6
Suitable for ponds up to max.	m³	25.0
Suitable for ponds with fish stock	m³	12.5
Suitable for ponds with koi	m³	6.5
Connection to		BioSmart 18000/36000, BioTec ScreenMatic² 40 – 60000

Pos.	Product	SKU	Quantity
1	Spare UVC electronics Vitronic 24 W	22219	1
2	Replacement bulb UVC 24 W	UV24-2G11-4P-SE	1
3	Quartz glass D44 x 398 with rim	21763	1
4	Spare part clip bolt set UVC 18/ 36/ 55	15748	1
5	ASM waterhousing Vitronic 18 / 24 / 36 W	22206	1
6	Additional pack Vitronic new	35877	1
7	Flat gasket hose tail 1 1/2″	19491	1
9	Cap nut 20 mm G 1 1/2″	15445	1
