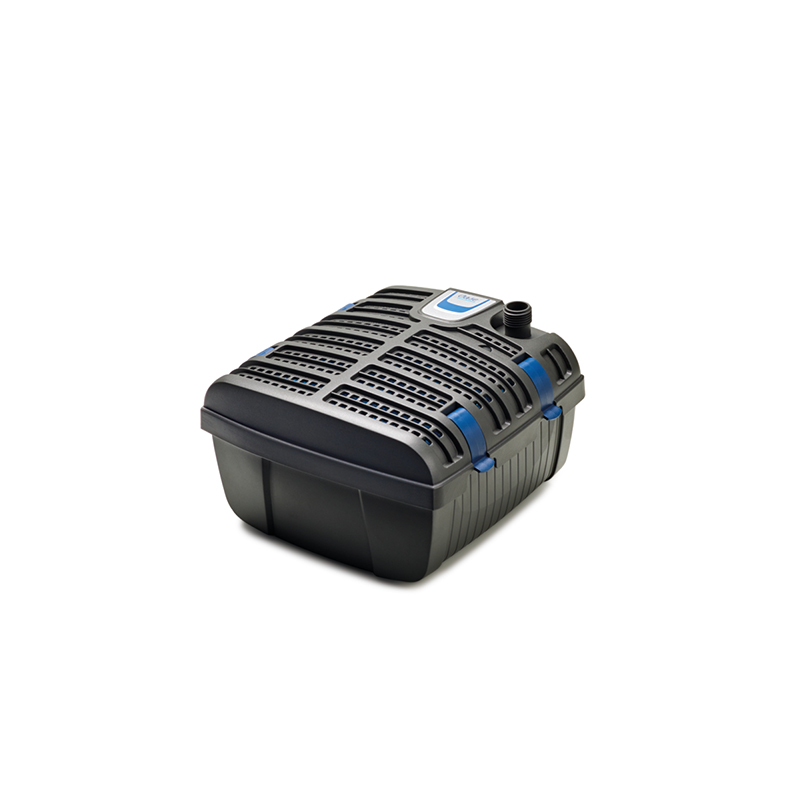

OASE Filtral UVC 1500

Original price was: $402.75.Current price is: $366.15.

Key Features

  • Multifunctional compact solution for pre-fabricated pools and smaller ponds
  • Clear water, guaranteed, and beautiful fountains
  • The technology is virtually invisible because it is set up underwater

Characteristic

  • Including OASE Clear Water Guarantee
  • Compact filter unit with UVC technology and 4 different filter materials
  • The pump for attractive fountains is already integrated
  • Adjustable T-piece for operating spouts and small watercourses
  • Individual adjustment of flow rate and fountain height
  • Set up completely under water – the appearance of the pond remains undisturbed
  • Visual function check of the UVC clarifier
  • Suitable for ponds up to 1.5 m³
SKU: AQ-03OF019 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 207 x 228 x 130
Rated voltage 230 V / 50 Hz
Power consumption W 18
Power cable length m 10.00
Net weight kg 3.00
Guarantee Years 2
UVC power W 5
Pump capacity, max. l/h 750
Max. flow rate l/h 560
Max. head height, metres m 0.90
Filter intake surface cm² 301
Number of blue filter foams Units 1
Number of red filter foams Units 1
Number of bio-surface elements Units 1
Special filter granulate kg 0.10
Pressure-side connection mm 13
Pressure-side connection ½”
Suitable for ponds up to max. 1.5
Suitable for ponds with fish stock 0.7
Aeration set included in the scope of delivery No
Pos. Product SKU Quantity
1 Replacement outer housing Filtral small 72781 1
2 ASM replacement pump / UVC Filtral 1500 72784 1
3 Replacement bulb UVC 5 W 57110 1
4 ASM repl. quartz glass Filtral small 72792 1
5 ASM repl. water housing Filtral small 72788 1
6 Spare rotor cpl. ASE 750 magnetized 22647 1
7 ASM pump housing ASE 1000 35762 1
8 Replacement foam set Filtral UVC 1500 70240 1
9 Bio surface element 19503 1
10 Replacement ceramic bag Filtral small 72795 1
11 O-Ring NBR 75 x 2.5 SH70 19945 1
12 Replacement set clips Filtral 72798 1
14 Stepped hose tail with bush cpl. G1/2 23641 1
