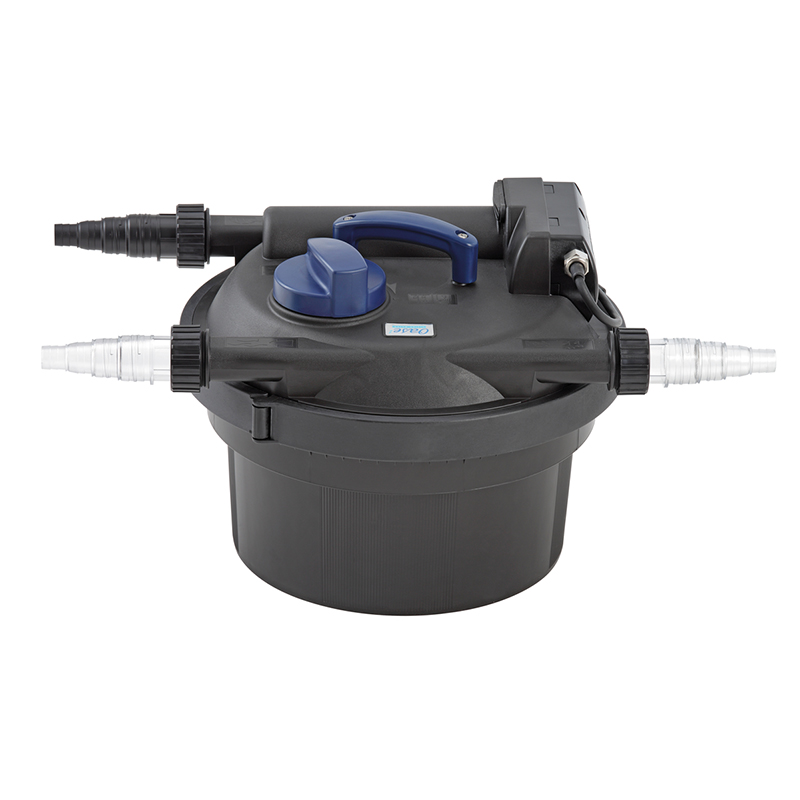

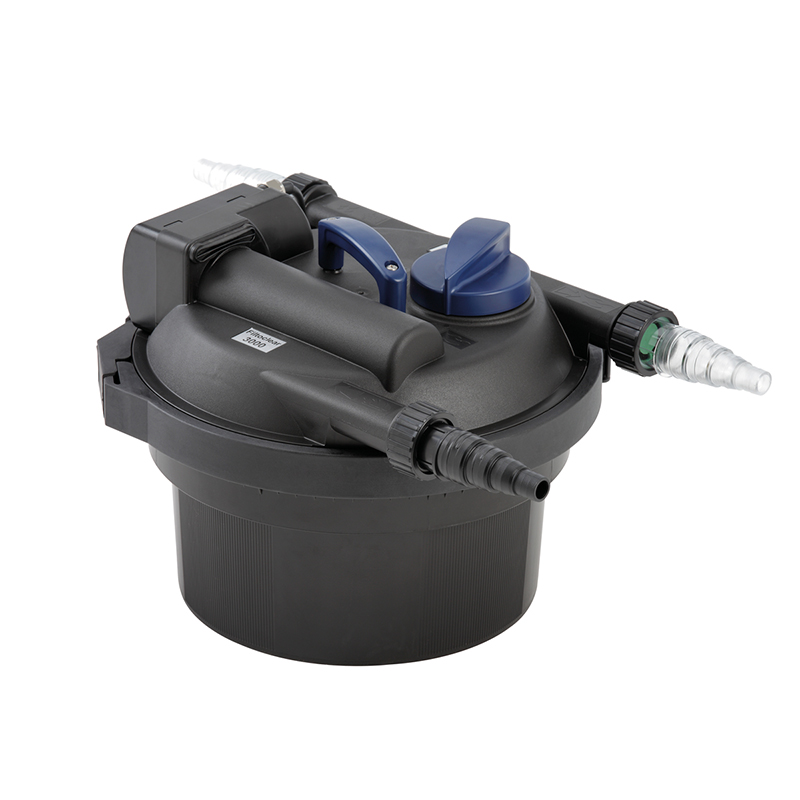

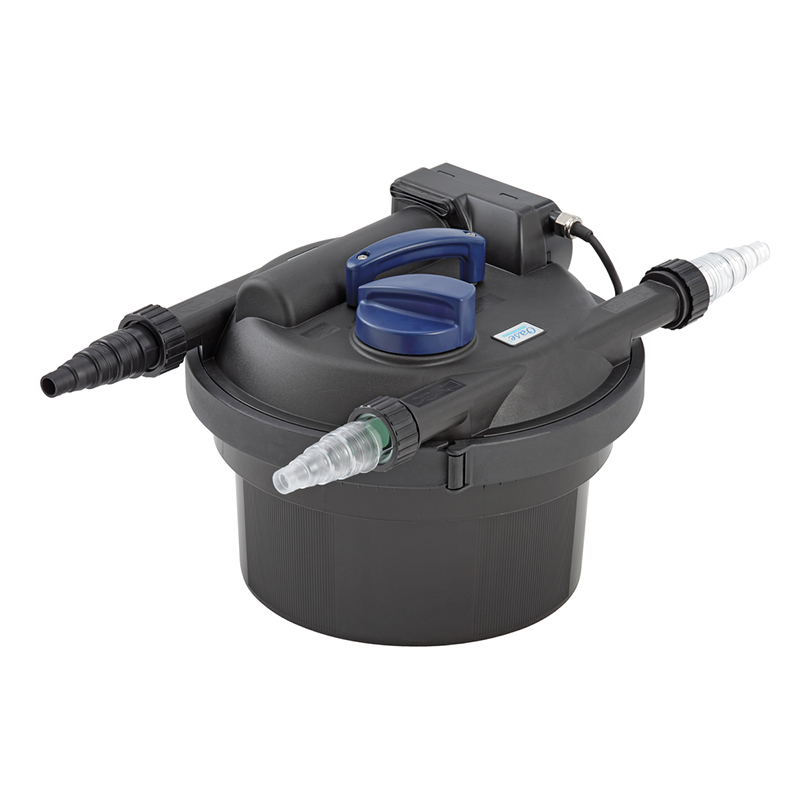

OASE FiltoClear 3000 [INT]

Original price was: $816.50.Current price is: $742.25.

Clear water guaranteed through the ideal combination of filter, pump and UVC technology
Convenient cleaning thanks to patented Easy Clean Technology
Almost invisible integration in the environment

Combination of mechanical biological cleaning and effective UVC technology
Including OASE Clear Water Guarantee
Ideal for supplying higher elevated watercourses and architectural pools
Patented Easy-Clean technology for easy and easy cleaning without opening the filter
Cleaning and backflush function can be easily operated on the cover
Possibility of monitoring the UVC clarifier, filter contamination and water flow-through
Compact filter size with high filtration capacity – perfect for architectural pools and where there is little space in the garden
High-quality, impact-resistant material
Integrated in the natural environment, thanks to the possibility of in ground installation and the sandstone look of the cover

SKU: AQ-03OP004 Category: Filtration

TECHNICAL DATA

Dimensions (Ø x H)	mm	380 x 310
Rated voltage		230 V / 50 Hz
Power consumption	W	14
Power cable length	m	5.00
Net weight	kg	5.58
Guarantee (+ request guarantee)	Years	2 + 1
UVC power	W	9
Number of blue filter foams	Units	2
Number of red filter foams	Units	1
Pollutant level indicator		Yes
Temperature display		No
Inlet connections	mm	19 / 25 / 32 / 38
Inlet connections		¾”, 1″, 1 ¼”, 1 ½”
Connections, outlet	mm	19 / 25 / 32 / 38
Outlet connections		¾”, 1″, 1 ¼”, 1 ½”
Connections, sludge discharge	mm	19 / 25 / 32 / 38
Sludge discharge connections		¾”, 1″, 1 ¼”, 1 ½”
Max. flow rate	l/h	4000
Max. operating pressure	bar	0.2
Suitable for ponds up to max.	m³	3.0
Suitable for ponds with fish stock	m³	1.5
Suitable for ponds with koi	m³	0.8

Pos.	Product	SKU	Quantity
A	Spare ballast cpl. 9 W FiltoClear	56162	1
1	Filter box FiltoClear 3000	24460	1
2	Cover FiltoClear 3000-15000	24459	1
3	Inner part cover FiltoClear	24457	1
4	Replacement bulb UVC 9 W	54984	1
5	ASM UVC FiltoClear 9/11 W 230 V ASE	14360	1
6	Quartz glass D33 x 200 with rim	13312	1
7	Mesh tube FiltoClear 3000 / 145 mm	14235	1
8	Protection pipe UVC	34521	1
9	Spare set operation pieces FiltoClear	34579	1
10	Spare parts set screws FiltoClear	34580	1
11	Spare part gasket set FiltoClear	34581	1
12	Replacement foam set FiltoClear 3000	56109	1
13	Cleaning rod FiltoClear 3000(USA 800)	24749	2
14	Additional pack FiltoClear 3000-15000	34561	1
15	ASM clamp pressure filter	34578	1
17	Disc filter foam	34516	1
