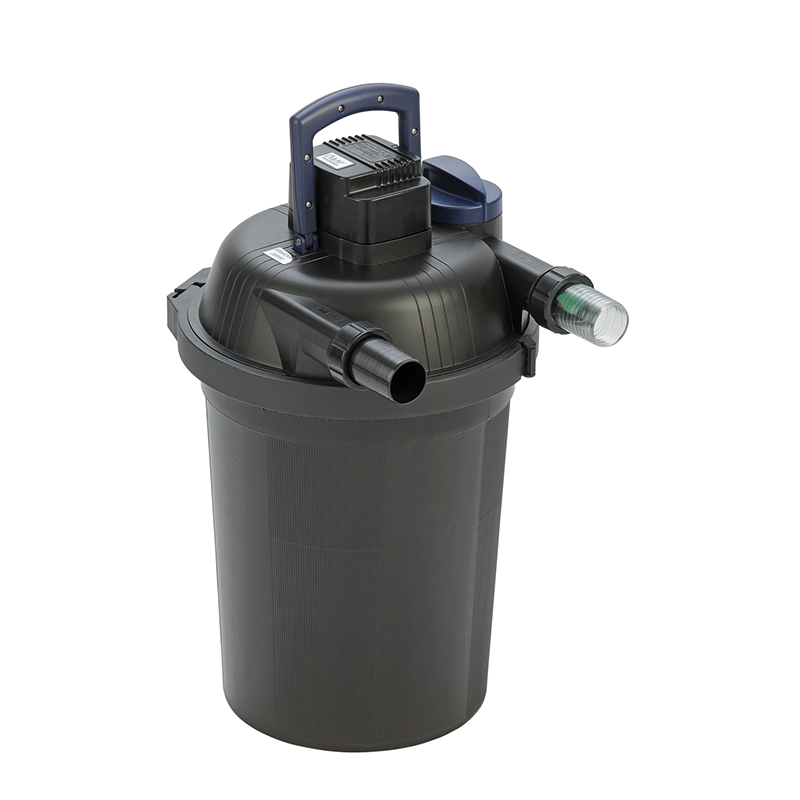

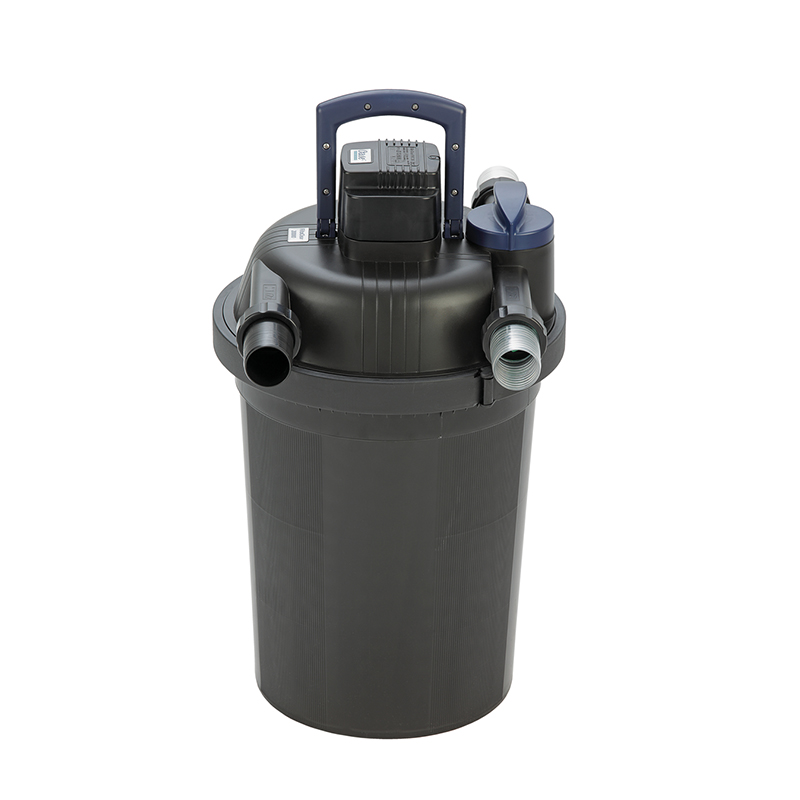

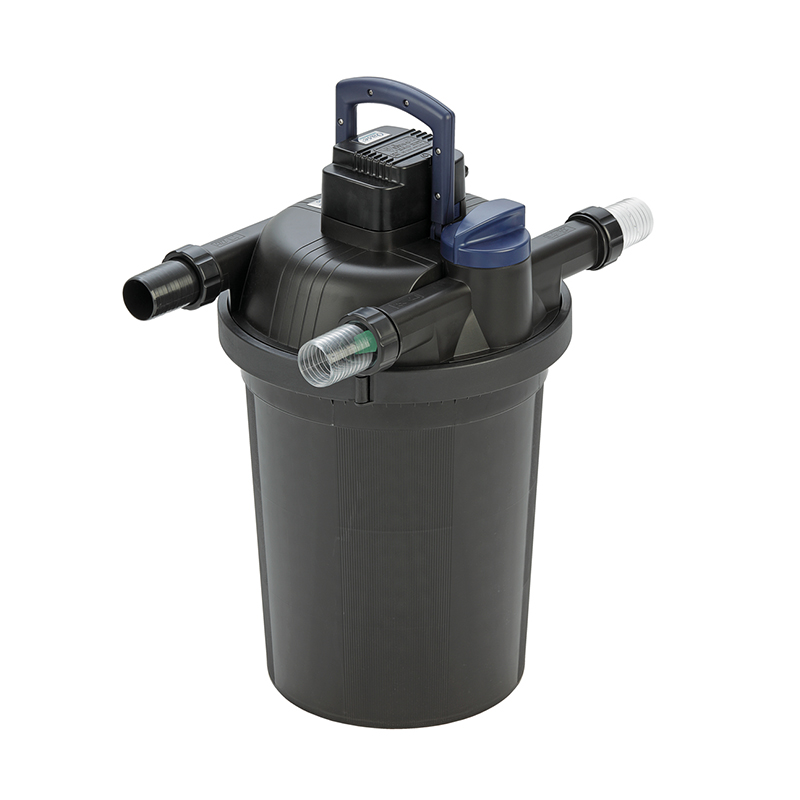

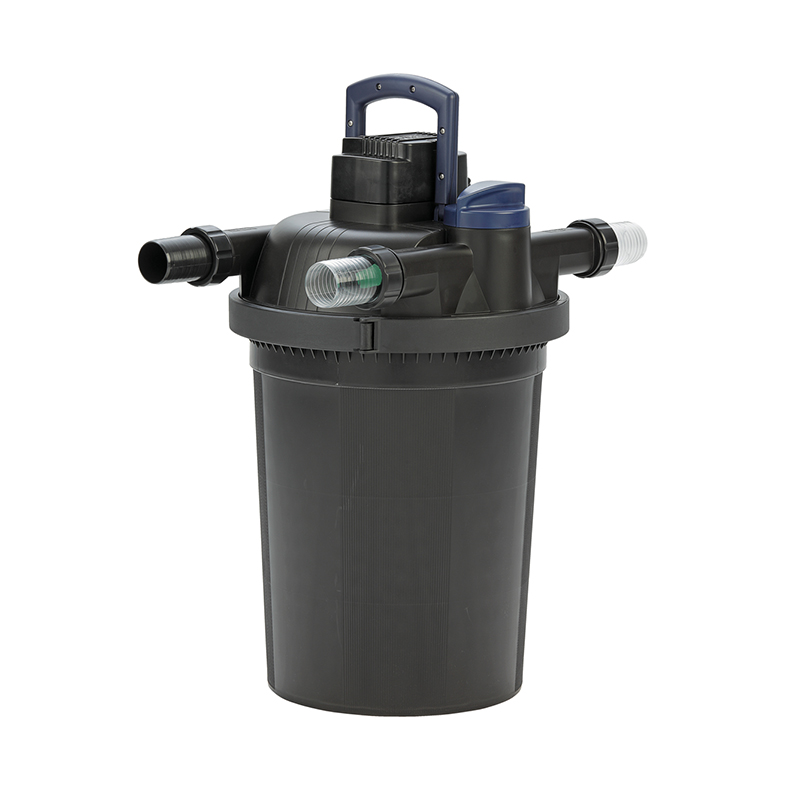

OASE FiltoClear 16000

Original price was: $1,523.79.Current price is: $1,385.25.

Clear water guaranteed through the ideal combination of filter, pump and UVC technology
Convenient cleaning thanks to patented Easy Clean Technology
Almost invisible integration in the environment

Combination of mechanical biological cleaning and effective UVC technology
Including OASE Clear Water Guarantee
Ideal for supplying higher elevated watercourses and architectural pools
Patented Easy-Clean technology for easy and easy cleaning without opening the filter
Cleaning and backflush function can be easily operated on the cover
Possibility of monitoring the UVC clarifier, filter contamination and water flow-through
Compact filter size with high filtration capacity – perfect for architectural pools and where there is little space in the garden
High-quality, impact-resistant material
Integrated in the natural environment, thanks to the possibility of in ground installation and the sandstone look of the cover
Incl. UVC clear rinse function for easy cleaning of the UVC unit
Incl. 2″ hose connection

Availability: 1 in stock

SKU: AQ-03OP007 Category: Filtration

TECHNICAL DATA

Dimensions (Ø x H)	mm	380 x 630
Rated voltage		230 V / 50 Hz
Power consumption	W	24
Power cable length	m	5.00
Net weight	kg	7.90
Guarantee (+ request guarantee)	Years	2 + 1
UVC power	W	24
Number of blue filter foams	Units	4
Number of red filter foams	Units	3
Pollutant level indicator		Yes
Temperature display		No
Inlet connections	mm	38 / 50
Inlet connections		1 ½”, 2″
Connections, outlet	mm	38 / 50
Outlet connections		1 ½”, 2″
Connections, sludge discharge	mm	38 / 50
Sludge discharge connections		1 ½”, 2″
Max. flow rate	l/h	10000
Max. operating pressure	bar	0.2
Suitable for ponds up to max.	m³	16.0
Suitable for ponds with fish stock	m³	8.0
Suitable for ponds with koi	m³	4.0

Pos.	Product	SKU	Quantity
A	Spare part lid FiltoClear 16000	21378	1
B	ASM UVC FiltoClear 16000 cpl.	21299	1
1	Additional pack FiltoClear 12000 – 30000	15830	1
2	Screw cap 2″	25993	1
3	ASM clamp pressure filter	34578	1
4	Filter box FiltoClear 11000	24462	1
5	Replacement foam set FiltoClear 16000	51258	1
6	Lip seal case/disc	15956	1
7	Foam plate FiltoClear 12000 – 30000	21539	1
8	Gasket set FiltoClear 12000 – 30000	16033	1
9	Spare part handle FiltoClear 12000-30000	16029	1
10	Spare part twist grip FiltoClear12-30000	16064	1
11	Spare part mesh tube FiltoClear 16000	21654	1
12	Cleaning rod FiltoClear 11000 (USA 3000)	24747	1
13	ASM lamp head FiltoClear UVC 24	21308	1
14	Replacement bulb UVC 24 W	56237	1
15	Quartz glass D44 x 398 with rim	21763	1
16	Spare part clamp bolt setFiltoClear12-30	16031	1
17	Stepped hose tail 2″	34056	1
