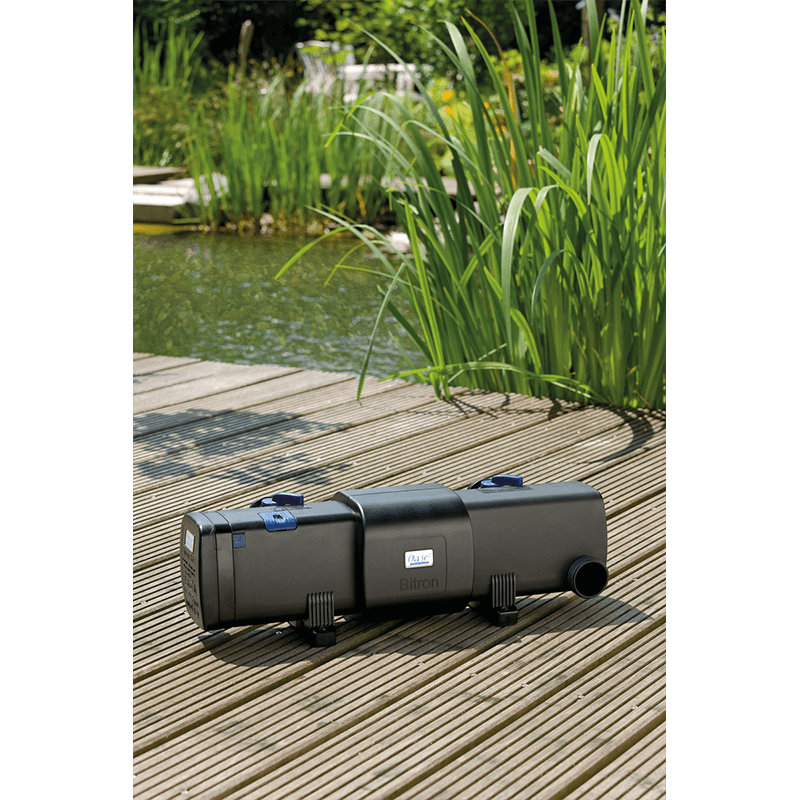

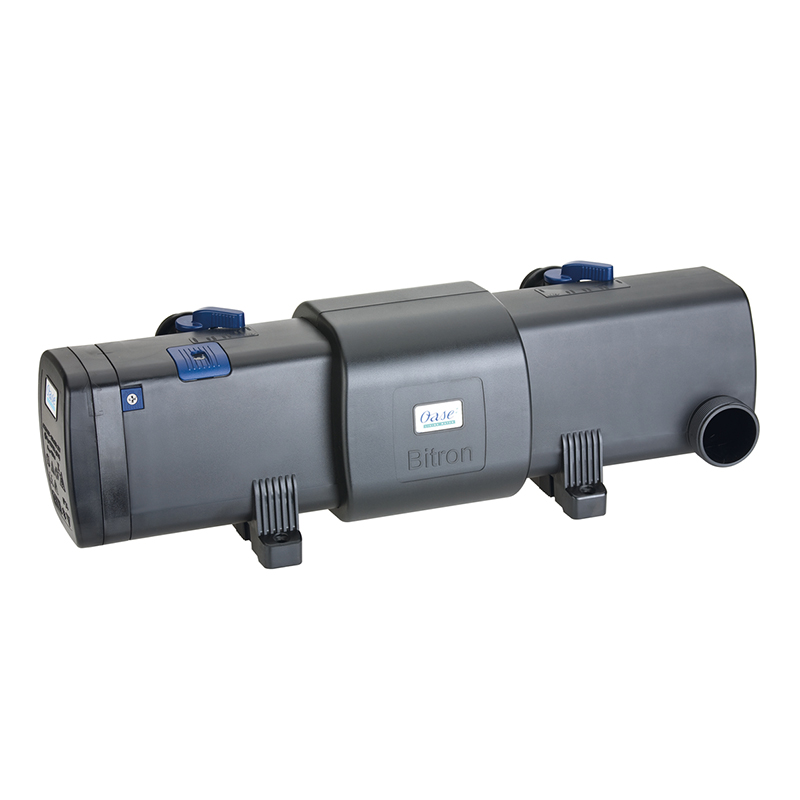

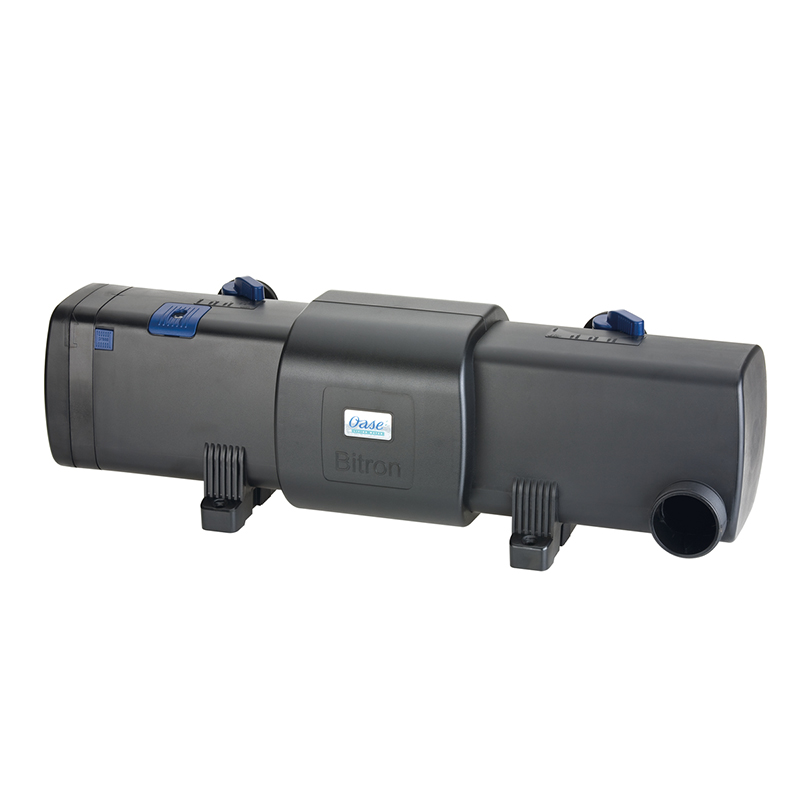

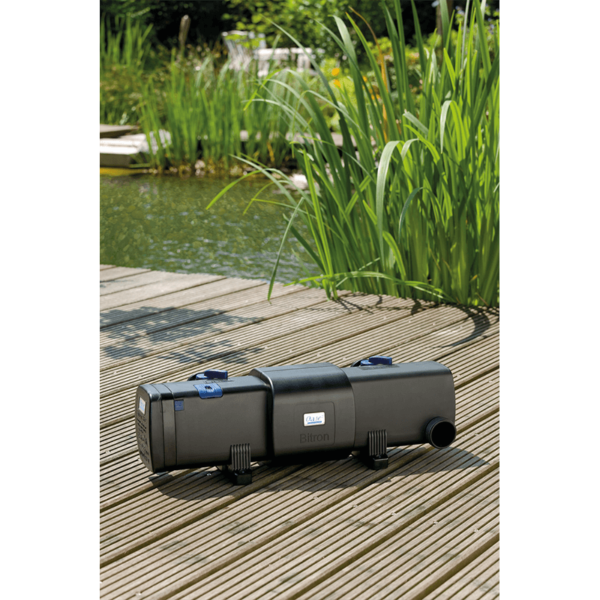

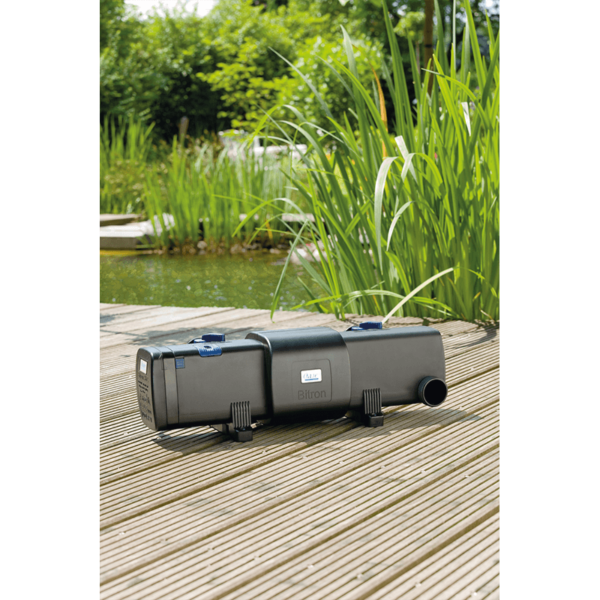

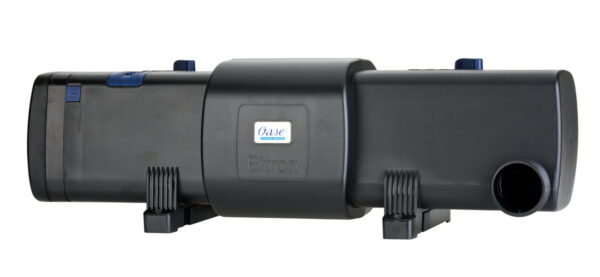

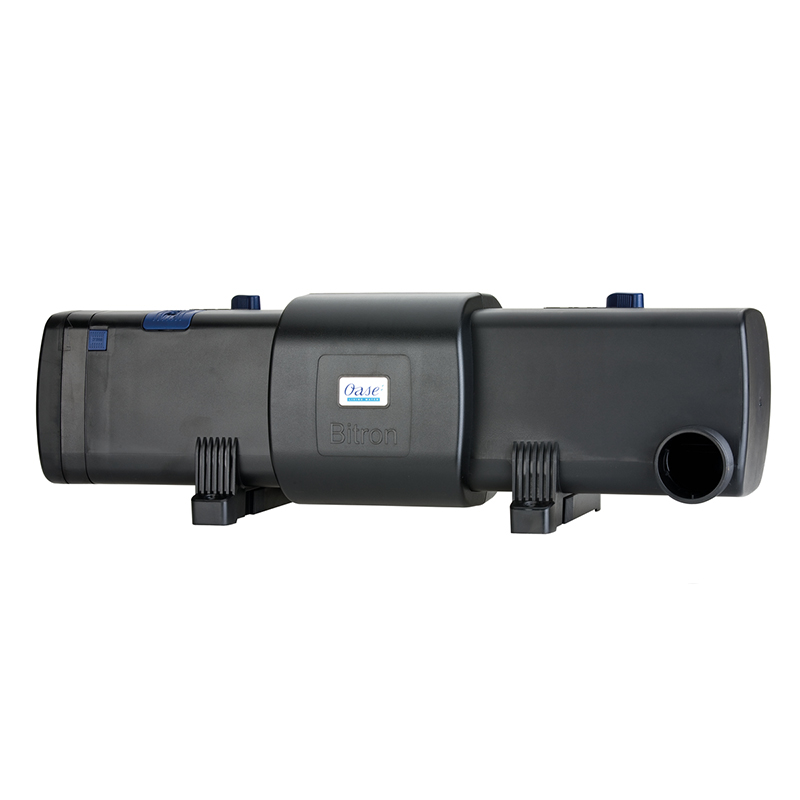

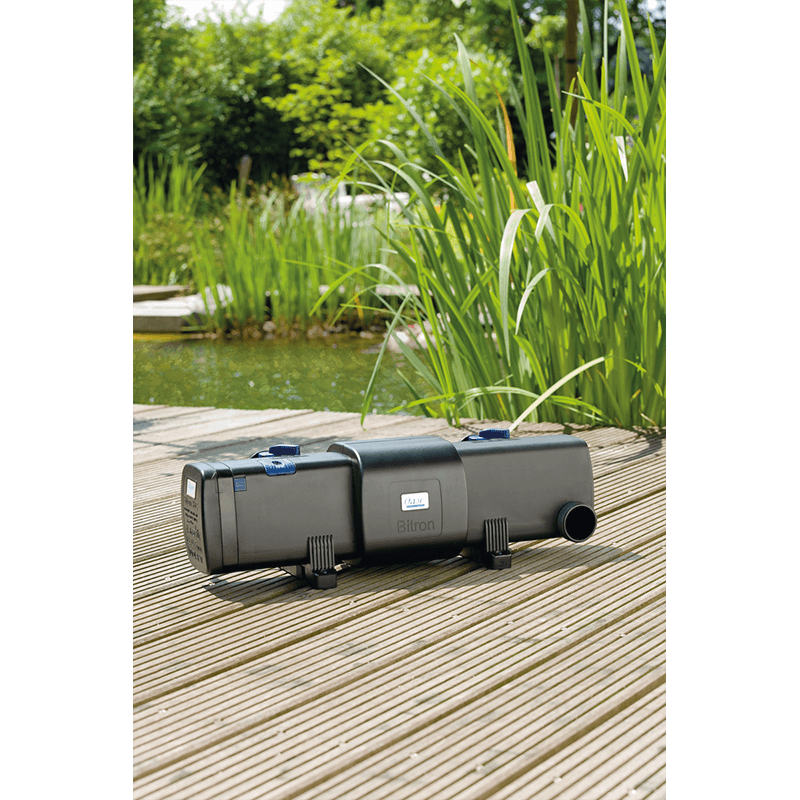

OASE Bitron C 36 W [INT]

Original price was: $1,316.55.Current price is: $1,196.85.

Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen levels
Clever UVC function monitor, display for bulb change and water temperature
Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
Individual water flow adjustment for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100% protection against eye damage
Quick release technology for easy bulb replacement
High-quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb
Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
Suitable for ponds up to 40.0 m³

SKU: AQ-03OU012 Category: Filtration

TECHNICAL DATA

Dimensions (L x W x H)	mm	600 x 180 x 198
Rated voltage		220 – 240 V / 50/60 Hz
Power consumption	W	36
Power cable length	m	5.00
Net weight	kg	3.97
Guarantee	Years	2
UVC power	W	36
Temperature display		No
Bypass control		manually
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	19 / 25 / 32 / 38 / 50
Inlet connections		¾”, 1″, 1 ¼”, 1 ½”, 2″
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1″, 1 ¼”, 1 ½”
Min. flow rate	l/h	8000
Max. flow rate	l/h	30000
Max. operating pressure	bar	0.5
Suitable for ponds up to max.	m³	40.0
Suitable for ponds with fish stock	m³	20.0
Suitable for ponds with koi	m³	10.0
Connection to		BioSmart 18000/36000, BioTec ScreenMatic² 40 – 60000

Pos.	Product	SKU	Quantity
1	Spare UVC cpl. unit Bitron C 36 2014	30911	1
2	Spare UVC electronic Bitron C 36 2014	30985	1
3	O-Ring NBR 82 x 2 SH70 greased	73477	1
4	Replacement bulb UVC 36 W	UV36-2G11-4P-SE	1
5	Holding plate UVC-lamp Bitron18/24/36/55	24232	1
6	UVC lamp protection Bitron C 24/36/55W	30607	1
7	Quartz glass D44 x 504.5 with rim	27586	1
8	O-Ring Viton 42 x 5 SH50 greased	73486	1
9	ASM clamp screw Bitron C	35113	1
10	Spare cleaning impeller Bitron C 36 / 55	42218	1
11	Additional pack Bitron C 18-110	35092	1
12	Oval head screw CH-V2A DIN 7981 4.8×19	22853	4
13	Foot Bitron C 18 / 24 / 36 / 55	35028	2
14	Spare housing Bitron C 36 / 55	35112	1
15	Additional pack Bitron C 36/55/72/110	35091	1
16	ASM Locking l.Bitron C 18/24/36/55W 2016	47817	1
